Based On Planar Waveguide Technology 1x8 PLC Splitter Stainless Steel Tube

ประเทศจีน Based On Planar Waveguide Technology 1x8 PLC Splitter Stainless Steel Tube ผู้ผลิต

ภาพใหญ่ :  Based On Planar Waveguide Technology 1x8 PLC Splitter Stainless Steel Tube

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: GEZHI or OEM
ได้รับการรับรอง: CE/FCC/RoHS/TUV/UL
Model Number: GZ-1x8 PLC Splitter

การชำระเงิน:

Minimum Order Quantity: 1
ราคา: Get Latest Price
Packaging Details: 2pcs in a foam with paper Box
Delivery Time: 2~7working days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 80000pcs per month
ติดต่อ
รายละเอียดสินค้า
Product Name: PLC Splitter Type: 1x8
Connector: LC/SC/FC/ST (PC Or APC) Wavelength: 1260~1620nm
Package: Stainless Steel Tube Application: LAN And CATV System
แสงสูง:

fiber optic beam splitter

,

fiber optic cable splitter

Based on Planar Waveguide technology 1x8 PLC splitter Stainless Steel Tube



Product Description:

GEZHI Photonics PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. GEZHI provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 bare type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1x8 PLC splitters with SC/APC Connector Device are used for small space that can be easily placed in a formal joint boxes and splice closure. In order to facilitate welding, it does not need specially designed for space reserved.



Features:

♦ Low Insertion loss



♦ Low PDL



♦ Compact Design



♦ Good channel-to-channel uniformity



♦ Wide Operating Wavelength: From 1260nm to 1650nm



♦ Wide Operating Temperature: From -40℃ to 85℃



♦ High Reliability and Stability



Applications:

♦ FTTX Systems



♦ PON Networks



♦ CATV Links



♦ Optical Signal Distribution



Technical Parameter:

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5

Temperature Stability

(-40~85 ℃)(dB)

0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×4×4 50×7×4 60×12×4 N/A
Module Dimension (mm) 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18 140×115×18
Mini-Module Dimension (mm) 50×7×4 50×7×4 50×7×4 60×12×4 80×20×6 100×40×6 N/A

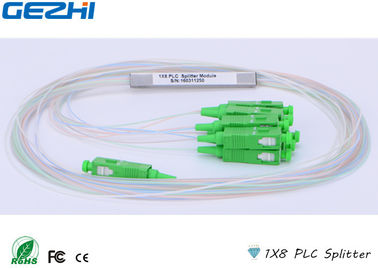

Product Picture:



Based On Planar Waveguide Technology 1x8 PLC Splitter Stainless Steel Tube

Based On Planar Waveguide Technology 1x8 PLC Splitter Stainless Steel Tube
